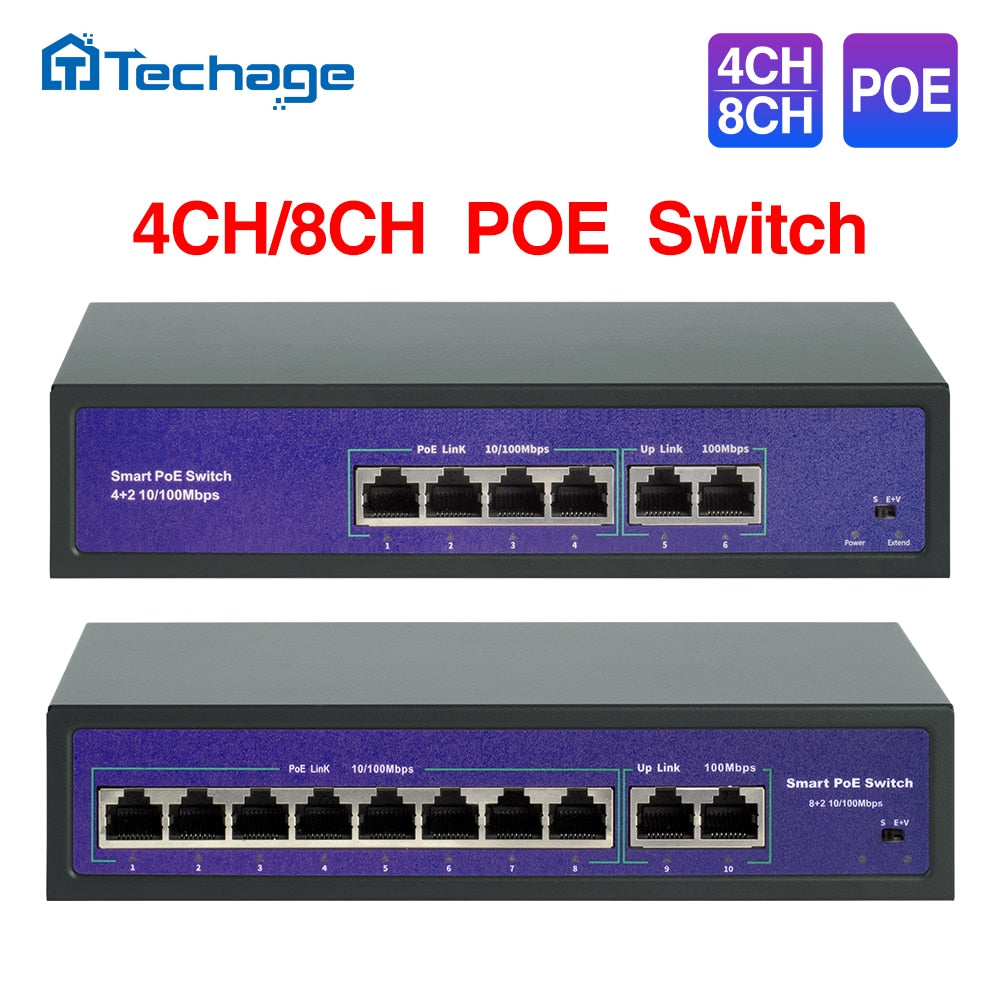

Techage 4CH 8CH 52V Network POE Switch With 10/100Mbps IEEE 802.3 af/at Over Ethernet IP Camera/ Wireless AP/ CCTV Camera System

Techage 4CH 8CH 52V Network POE Switch With...

Sale price$45.98 Regular price$52.99
Ships From:

Ships From

Cable Length:

Cable Length

SPECIFICATIONS

Standard Protocol: IEEE 802.3 af/at

Size: As the picture

Power Supply: US/EU/AU/UK Plug Available

Power: 4CH:DC52V 65W 8CH:DV52V 120W

Plug Type: US,EU,UK,AU

POE Ports: 4CH:2PE+4POE 8CH:2PE+8POE

Origin: Mainland China

Model Number: YN-POE104/YN-POE108

Item Type: POE Switch

Features: Stackable,VLAN Support,POE

Communication Mode: Full-Duplex & Half-Duplex

Certification: CE

Case Material: Metal

Brand Name: Techage

ALL PORT: 10/100Mbps transmission Rate



Product Description

* This is a 48V standard POE switch, designed and developed independently by SSC Tech to meet the needs of network power supply.


* It adopts the latest high-speed Ethernet switching chip, ultra-high backplane bandwidth design, and has extremely fast data processing capabilities to improve smooth data transmission performance ,With 8 power supply network ports, 2 RJ45/uplink ports. Among them, all RJ45 ports support network cable power supply.


* It's suitable for Hikvision,DAHUA and other brands with IEEE802.333af/at PoE Devices(PD) Support EXTEND mode, Max Network Cable length to 250 meters.


Product Features

* All Port: The transmission rate of 1-8 Fast Ethernet port is 10/100Mbps (12+, 36-) and 2 uplink 10/100Mbps transmission rate Fast Ethernet port.

* Security: Independent port and function of current protection

* CableType: 3 types and more than 3 types of twisted pair for 10BaseT(No support for power supply); 5types and more than5 types of twisted pair for 100Base-TX\100Base-TX.


Software Specification

* Switch Capacity: 2.0G

* Exchange mode: store-and-forward

* Rate of data signalling: 1-8 port 10/100Mbps and 2 UPlink port 10/100Mbps(Half-duplex mode)

* Standards compliance: IEEE802.3AF/AT MAC address space: 8K Working Environment Mechanical Dimension : 191mm (L)×141mm(W) ×44mm(H) Input Power: AC220-AC240 V / 120W Ambient temperature: Operating Temperature 0℃ to 40℃ / Storage Temperature -40℃ to 70℃


WARM TIPS:Please select the consumption according your device power , In order to ensure device stable running, the total power consumption should not exceed 25 watt of the power supply.


If the parameters of your camera are “12V/PoE” , Select this 48V PoE Switch with confidence please,it's suitable for your cameras.

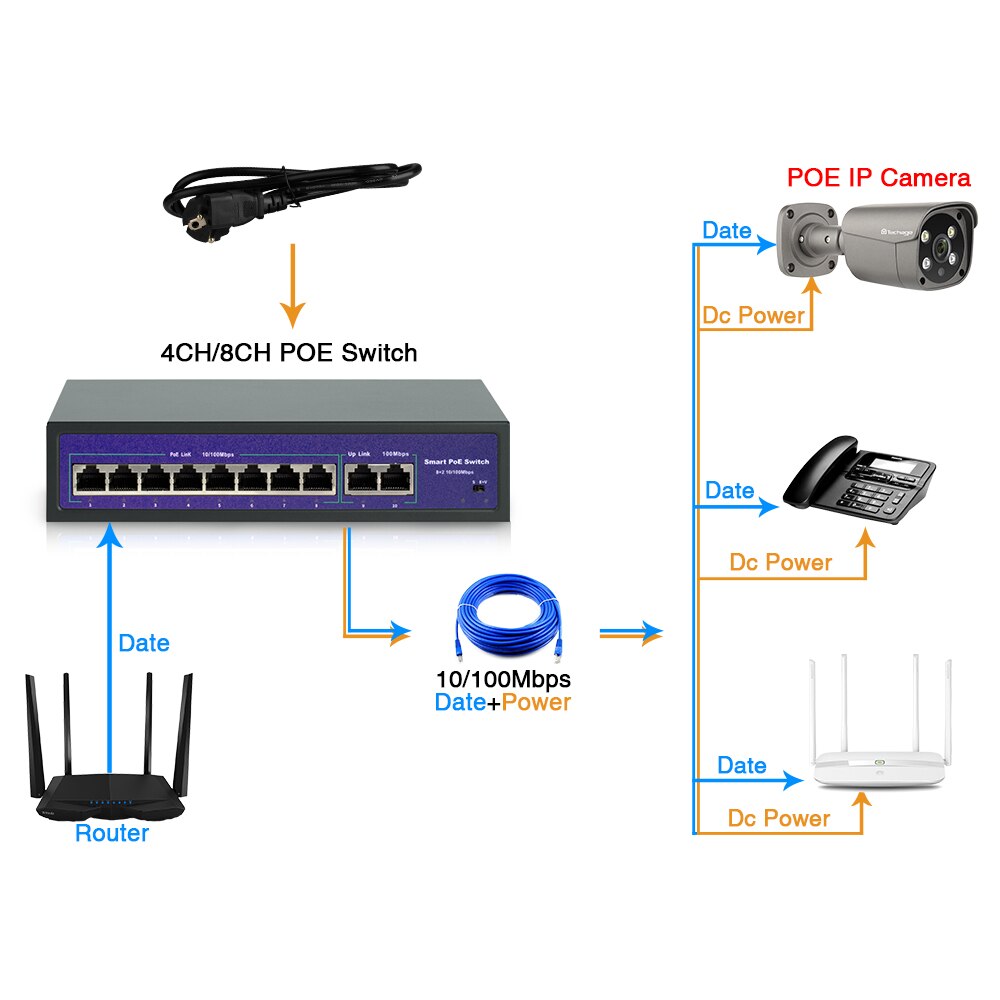

Connect with POE Camera

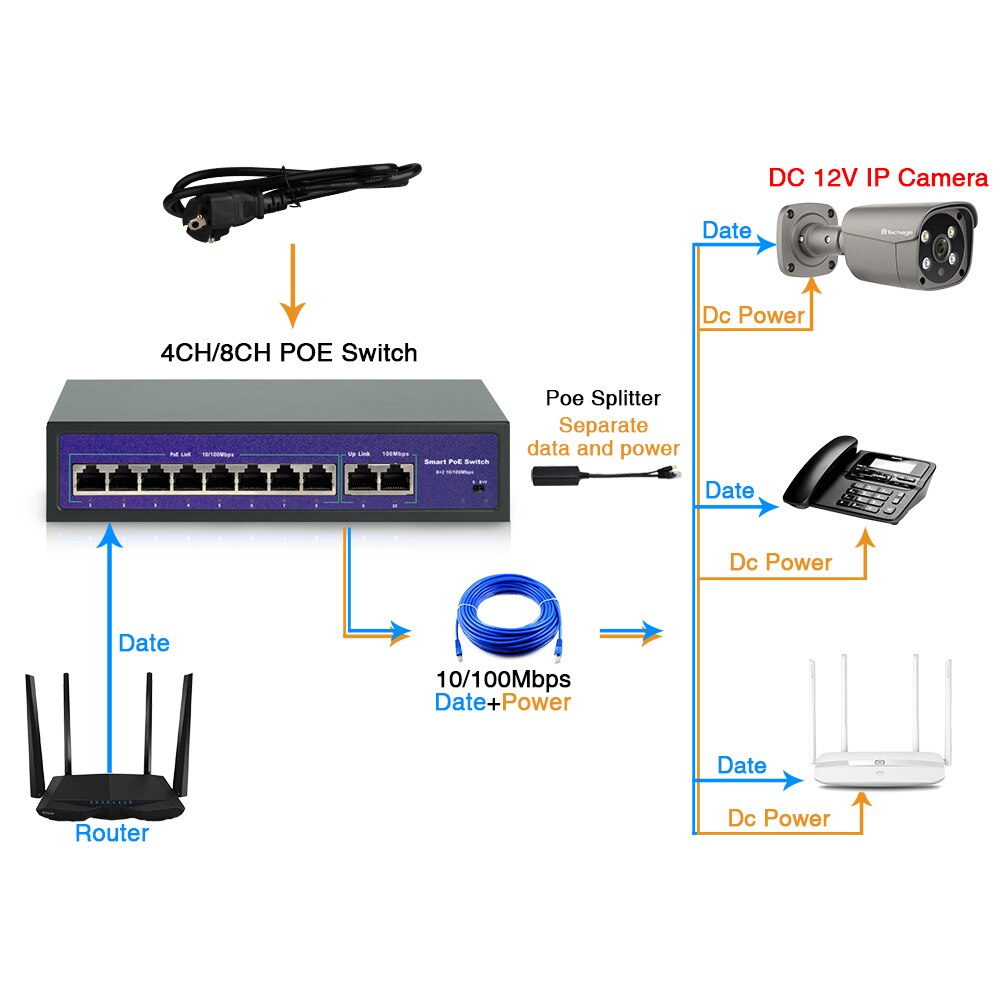

Connect with DC 12V IP Camera


NOTE:When VLAN Extend mode enable,the Max bandwidth for the Network ports (1-8 ) will be reduced to 10Mbps for each one, Transmission distance will reach 250M on this model.

Please check your IP CAMERA's bit stream setting.

We recommend the value does not over 8Mbps(8192Kbps).

(The up-link is not affected, it will always working at 100Mbps max speed) 10/100Mbps Midspan Mode-B Unsolicited Power (1,2+/3,6-) Compatible IEEE 802.3af/at, Per port Max 25Watt Wall Mount .

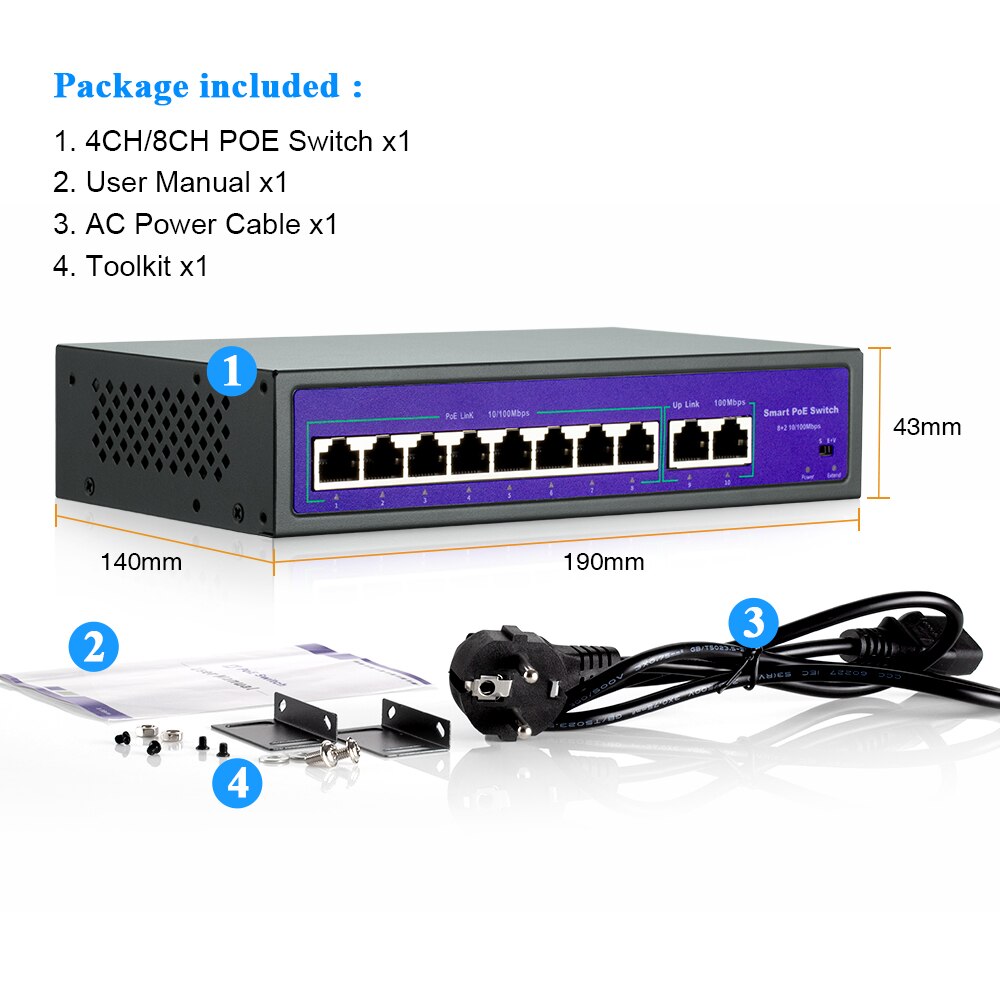

Package included:

1. 4CH/8CH PoE switch x1

2. AC Power Cable x1

3. User Manual x1

4. Toolkit x1
