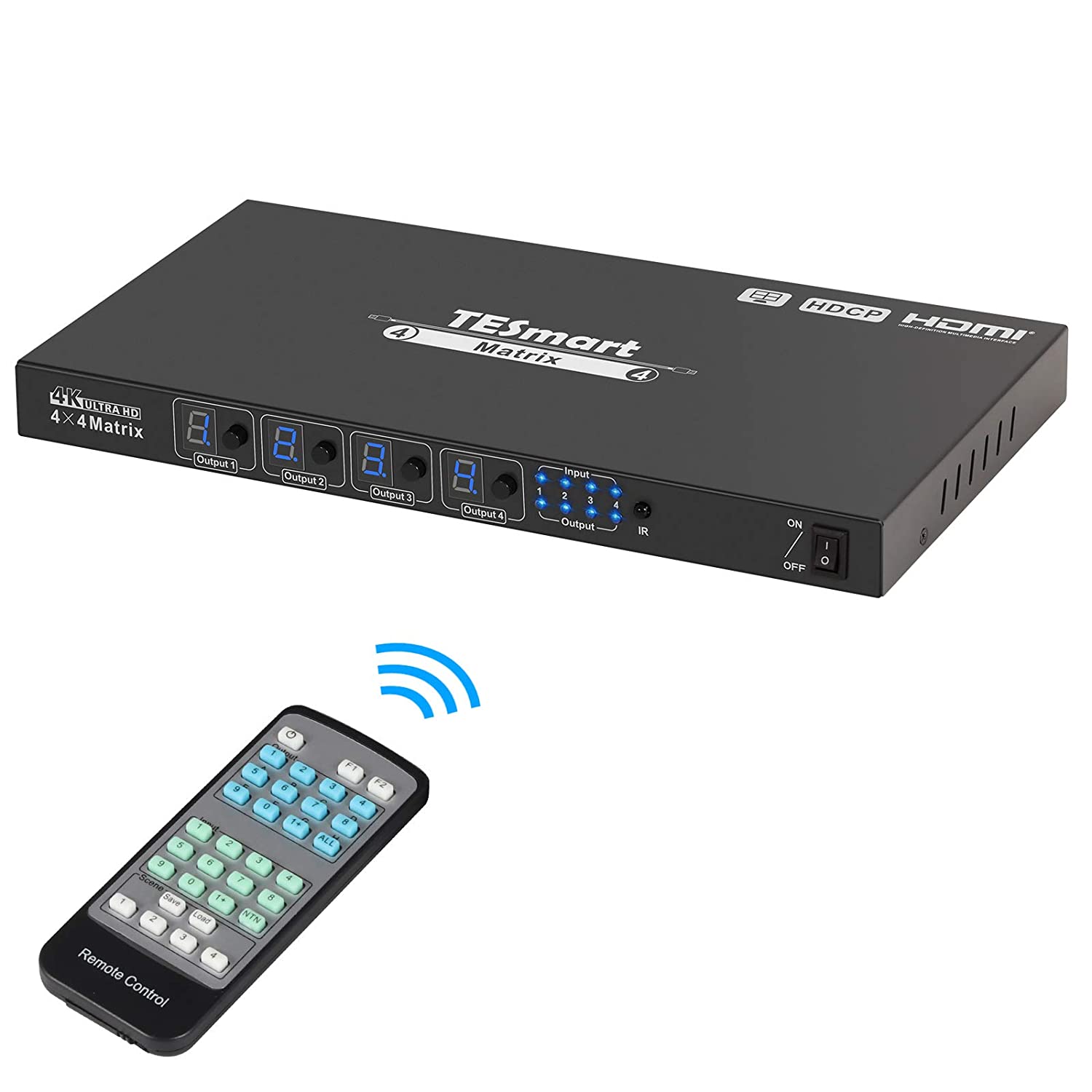

TESmart 4x4 Multi-viewer HDMI Matrix 4K Video Switcher 4K@30hz, HDCP, EDID, 4 in 4 Out Updated 4x4 HDMI Matrix Switcher Control

TESmart 4x4 Multi-viewer HDMI Matrix 4K Video Switcher...

Sale price$455.98 Regular price$480.99
Color:

SPECIFICATIONS

Type: KVM Switches

Resolution: Up to 3840x2160@30Hz

Output: HDMI

Origin: Mainland China

Model Number: HMA0404A60

Input: HDMI

Color: Black

Chasing material: Metal

Certification: CE,FCC,KC,pse,RoHS,UL,WEEE

Brand Name: TESmart

Application: TV,PS4/3,xbox,Switch,PC,Display

Dear Users:

HDMI Matrix can greatly facilitate your management of audio and video devices. If you have multiple sources and display devices like game consoles, streaming boxes, projectors, and monitors, our HDMI Matrix can help you match your devices at will. You can choose any output device to display any input device you want, and you can also display one input the device on multiple output devices at the same time, eliminating the troublesome of unplugging cables and switching devices, and greatly simplifying the device management.

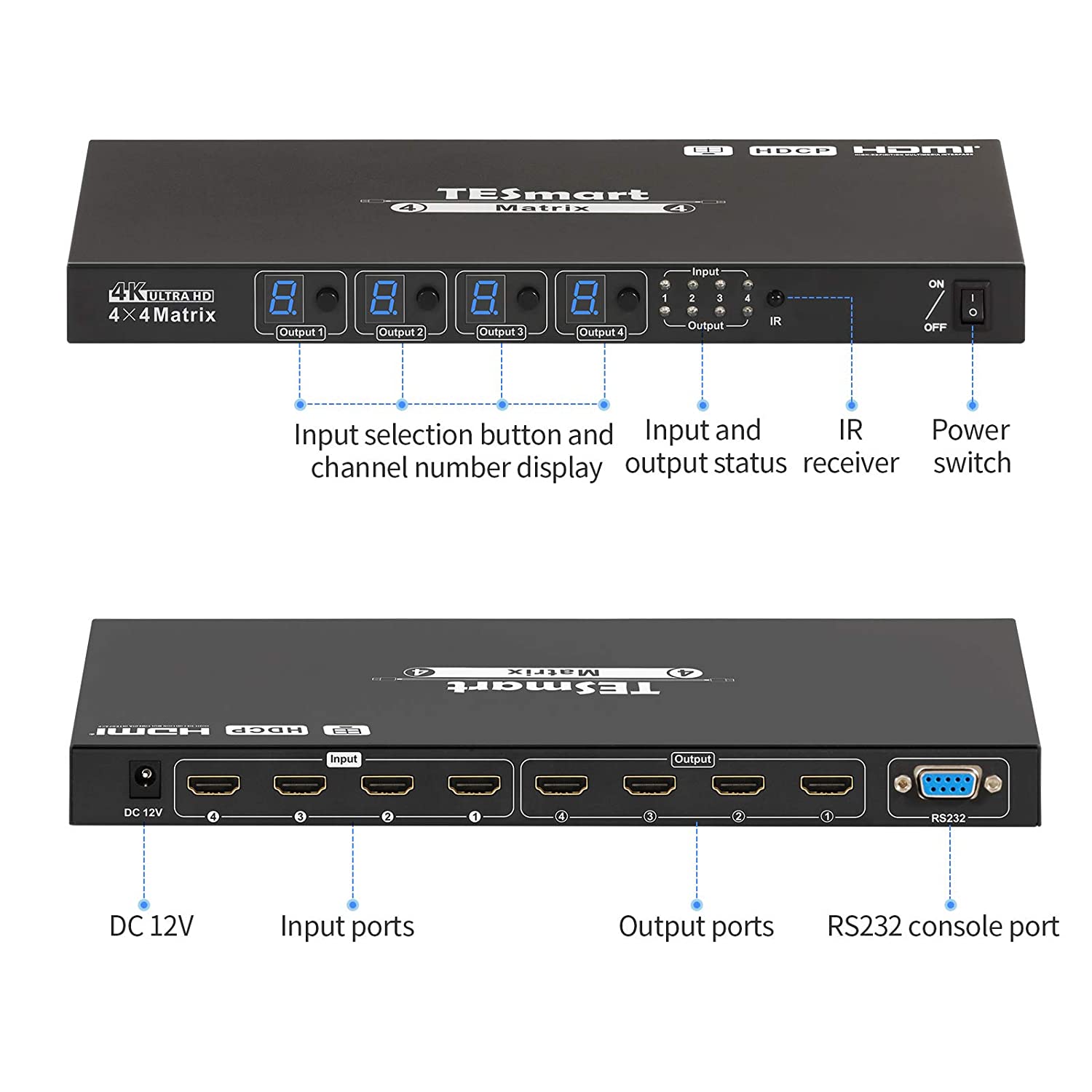

You can switch input ports by front panel buttons, IR signals, and RS232 port.

This product also supports Quad Multi-Viewer mode, can be applied to engineering, security, media, and other scenarios.

Style: 4X4 A60-Quad Multi-Viewer

Features:

  • With 4 HDMI inputs and 4 HDMI outputs

  • Each HDMI output can share the same input or select standalone input

  • Support resolution up to 4k@30Hz ( 3840x2160)

  • HDCP compliant

  • Each HDMI output support Quad Multi-Viewer mode

  • Support two different resolutions in Quad Multi-Viewer mode: 1280x720@60Hz or 1920x1080@60Hz

  • Matrix status could be memorized after power down, automatically restore previous matrix status after next power on

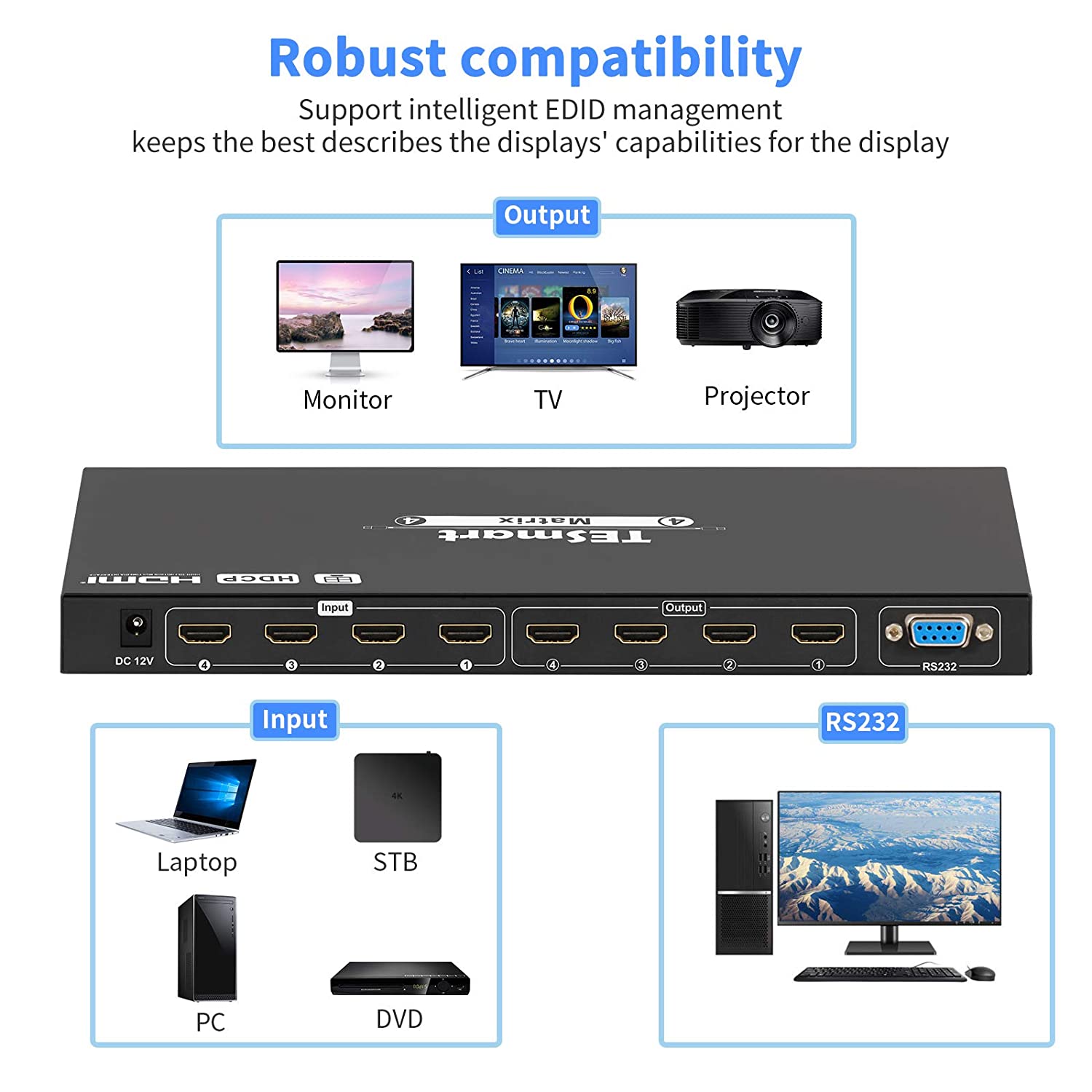

  • Smart EDID management, make it compatible with most display devices

  • Support 4 configurable user preset connections

  • Easy to control matrix via IR remote, front panel key, and RS232 port


Switcher & Splitter mode

You can use this 4x4 HDMI matrix as a switcher or splitter because each screen can share the same input source or a stand-alone source.

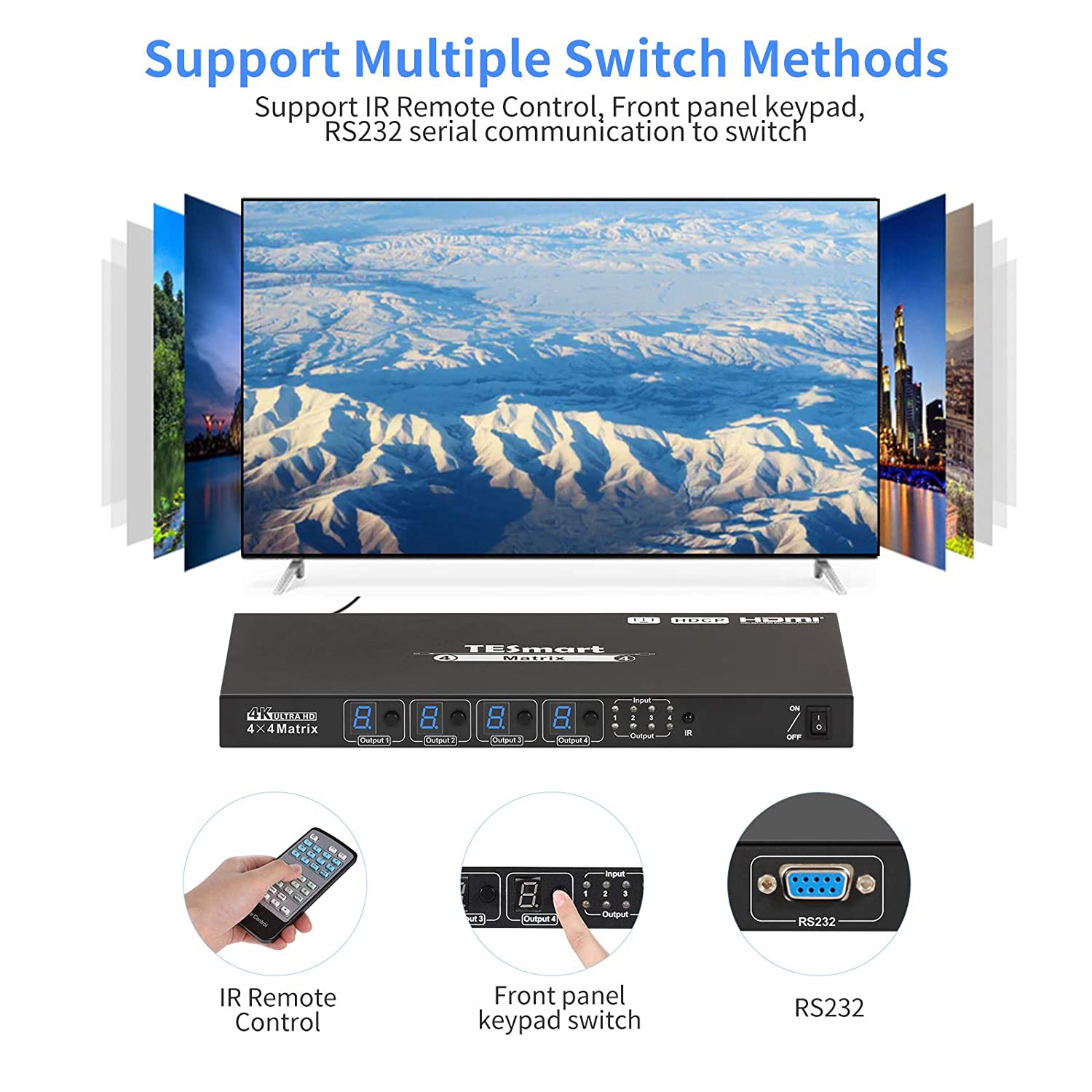

3 Switching Methods


  1. Buttons on the front

  2. IR remote control (for safety reasons, the battery is not included)

  3. RS232 serial command


* *Note: Please insert the CR2025 battery into the remote control before using IR signals to control this matrix.

Support HDCP 1.4

Support HDCP 1.4 / 1.2 / 1.0 (does not support HDCP 2.2)

If the HDCP of the device is HDCP 2.2, please switch off the HDCP of your device beforehand and then use the HDMI 4x4 switch to connect your devices and monitors.

Support 4K@30Hz & 1080P 3D

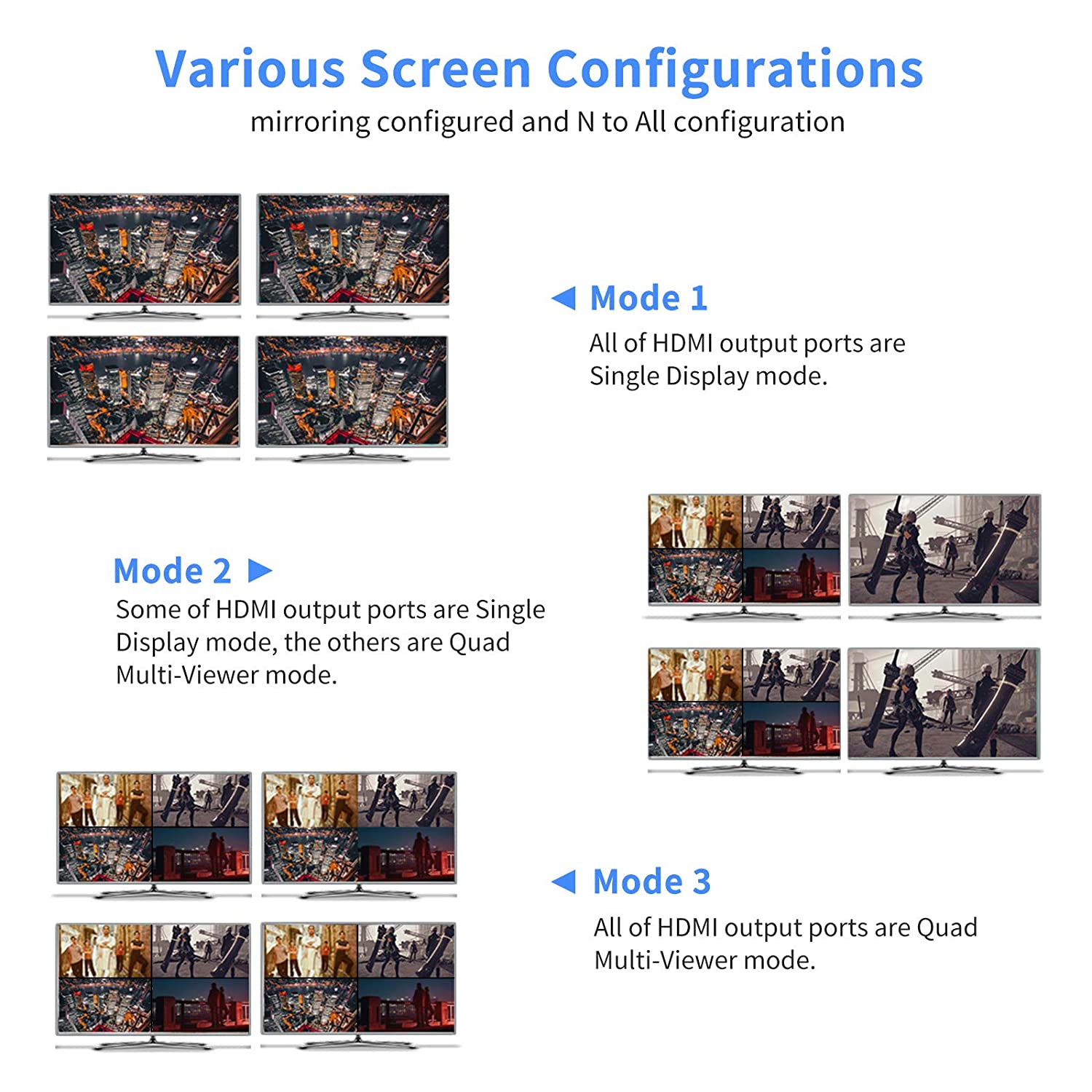

Quad Multi-viewer Mode

The 4k HDMI matrix can display 4 resources on one screen at the same time to monitor all 4 inputs.

Each screen is separate from the others, and each display can be set to the multi-viewer mode or common-mode at the same time.

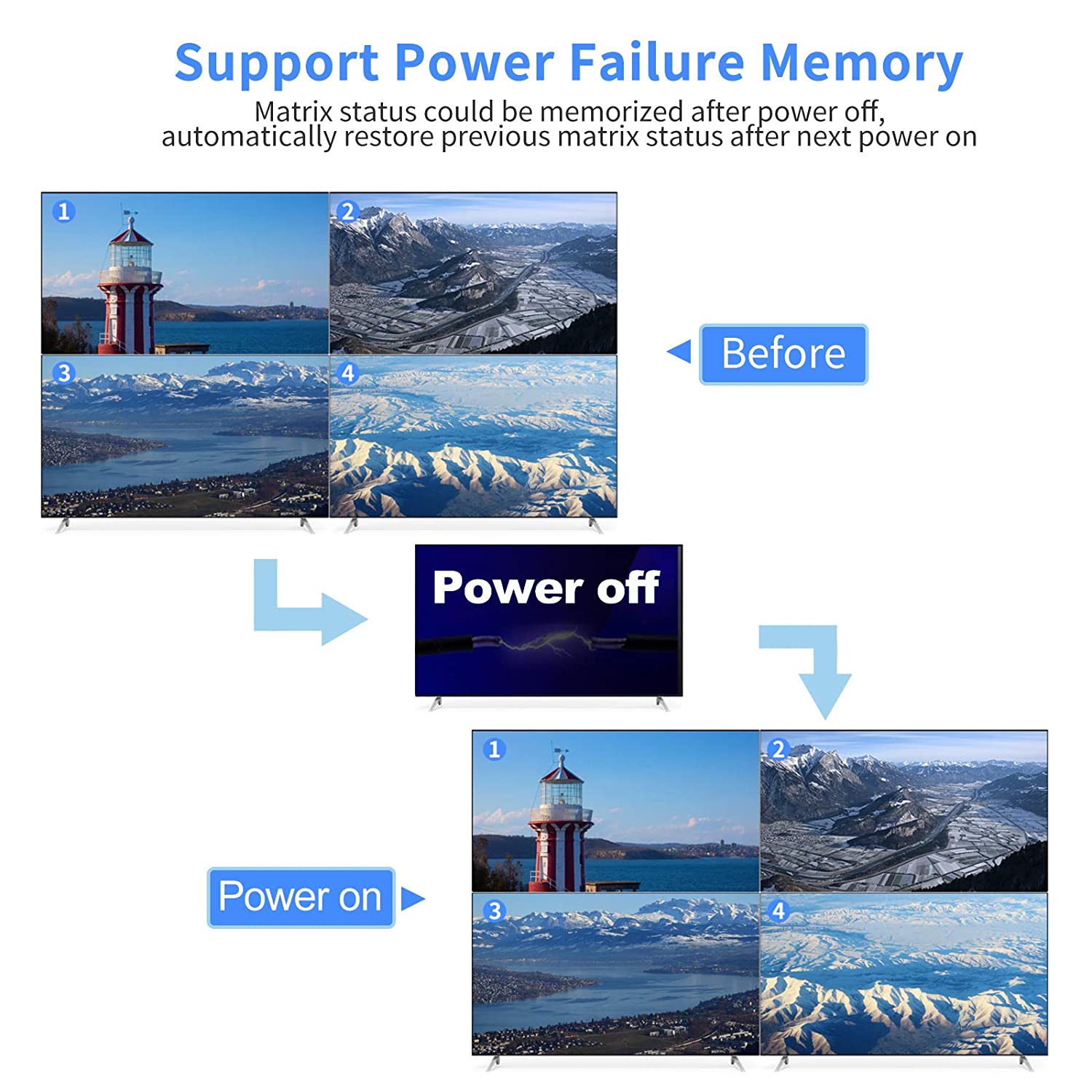

Power Failure Recovery Function

Support the switch-off memory and automatically restores the channel selection before the matrix is switched off after the next switch-on.
