USB C Dock Dual HDMI-compatible VGA USB Hub Adapter Type C Laptop Docking Station For HP Elitebook Dell XPS Lenovo ThinkPad Asus

USB C Dock Dual HDMI-compatible VGA USB Hub...

Sale price$66.98 Regular price$74.99
Color:

SPECIFICATIONS

Width: 5inch

Type: Laptop Docking Stations

Size: 260mm*80mm*(16mm, 8mm)/10.24*3.15*(0.62, 0.31)inch

Port-9: HDMI-Compatible max support 4K 30Hz

Port-8: HDMI-Compatible max support 4K 30Hz

Port-7: Ethernet Network Adapter RJ45 Port, 10/100Mbps, NOT support 1000Mbps

Port-6: USB 3.0, Speed up to 5Gbps

Port-5: USB Type C Female Port for Data Transmission

Port-4: USB 3.0, Speed up to 5Gbps

Port-3: Micro SD Card Slot, TF Card Slot

Port-2: SD Card Slot

Port-12: USB Type C PD Charging Port

Port-11: VGA max support 1080P 60Hz

Port-10: DC 3.5mm Audio Jack Port

Port-1: USB 2.0, Type A Female Port

Package: Yes

Origin: Mainland China

Model Number: SW-14-2-12

Material: Aluminum alloy

Material: Aluminum

Length: 12inch

Interface: USB Type C male port

Function-2: Support MST(DisplayPort Multi-Stream Transport)

Function-1: Connect Keyboard, Mouse, USB Flash, Printer etc.

Color: Silver

Certification: CE,FCC,RoHS

Brand Name: pobod

USB C Dock Dual HDMI-compatible VGA USB Hub Adapter Type C Laptop Docking Station For HP Elitebook Dell XPS Lenovo ThinkPad Asus

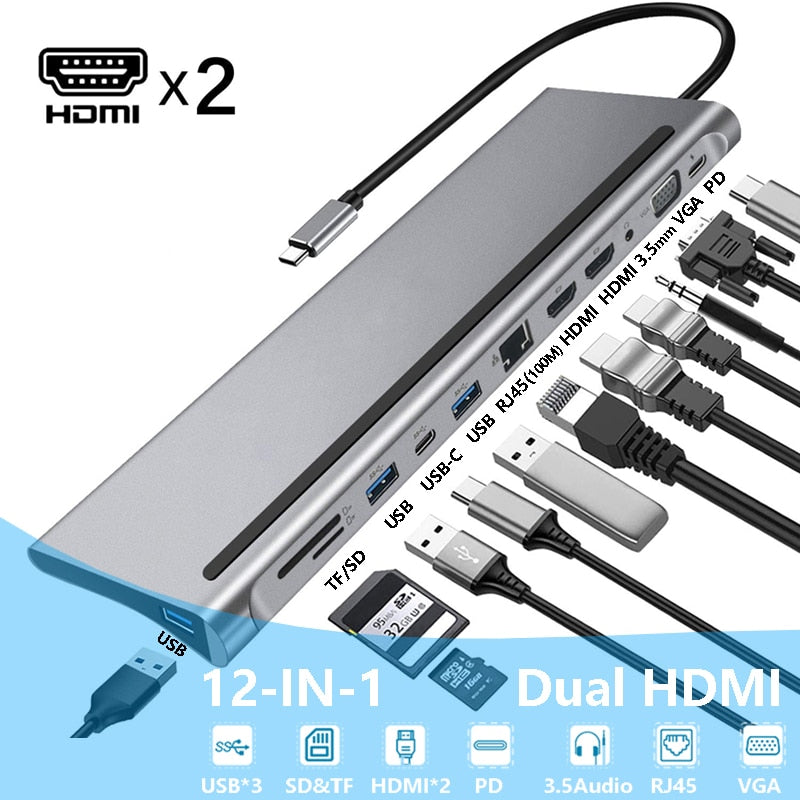

USB C Docking Station Specifications:

*********************************************************

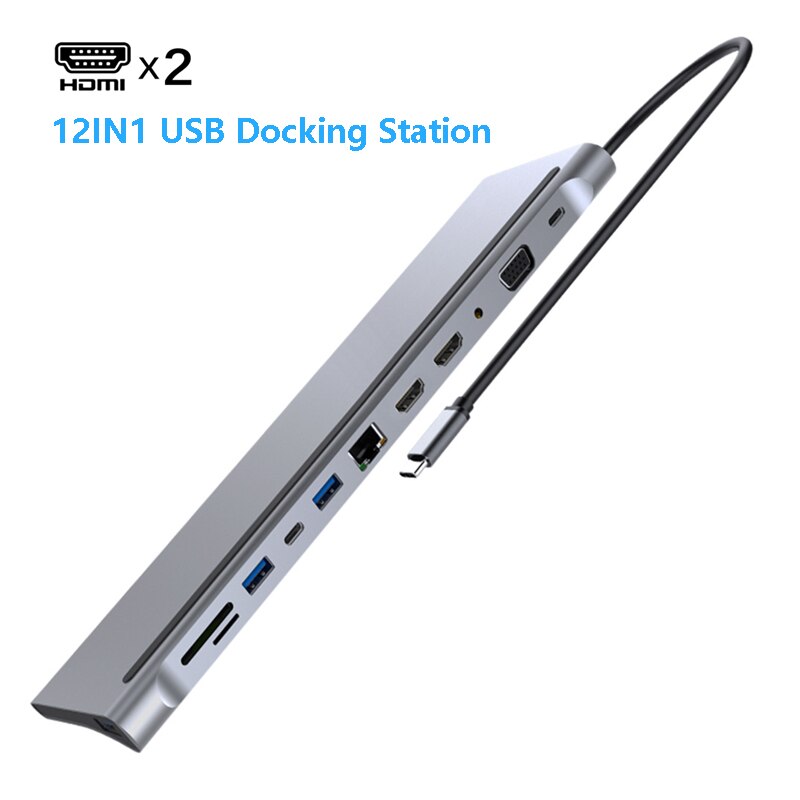

12-IN-1 Docking Station

Color: Gray
Material: Aluminum alloy
Size: 274mm*80mm*(16mm, 8mm)/10.79*3.15*(0.62, 0.31)inch
Length of Cable: 290mm/11.42inch

Interface: USB Type C male port
Port-1: USB 2.0, Type A Female Port
Port-2: SD Card Slot
Port-3: Micro SD Card Slot, TF Card Slot
Port-4: USB 3.0, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W
Port-5: USB Type C Female Port for Data Transmission, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W
Port-6: USB 3.0, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W
Port-7: Ethernet Network Adapter RJ45 Port, 10/100Mbps, NOT support 1000Mbps
Port-8: HDMI max support 4K 30Hz, Downwards Compatible with 1080P, 720P etc.
Port-9: HDMI max support 4K 30Hz, Downwards Compatible with 1080P, 720P etc.
Port-10: DC 3.5mm Audio Jack Port
Port-11: VGA max support 1080P 60Hz, Downwards Compatible with 1080I, 720P etc.
Port-12: USB Type C PD Charging Port

*********************************************************

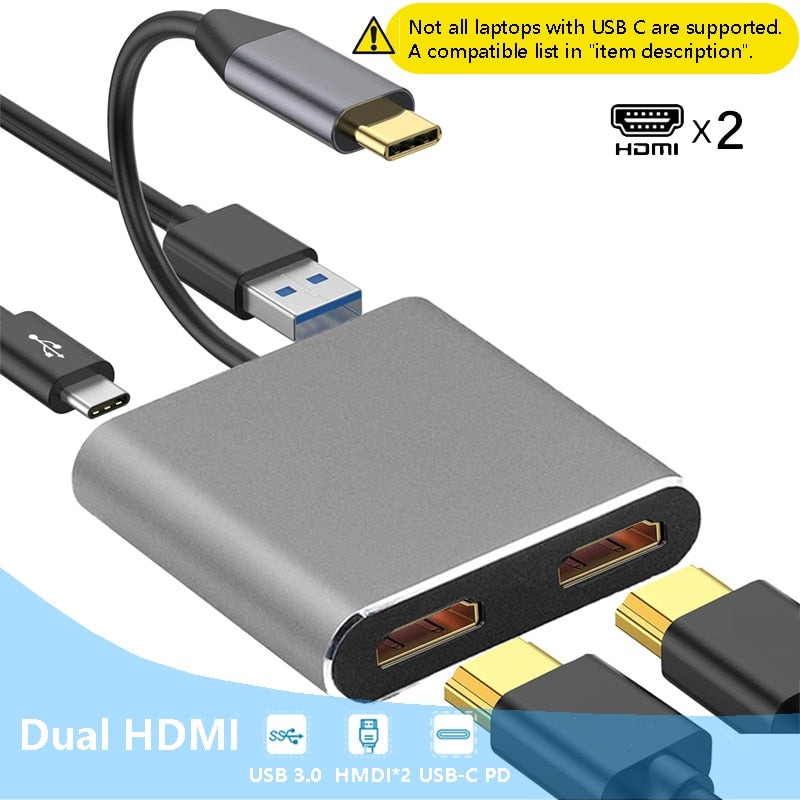

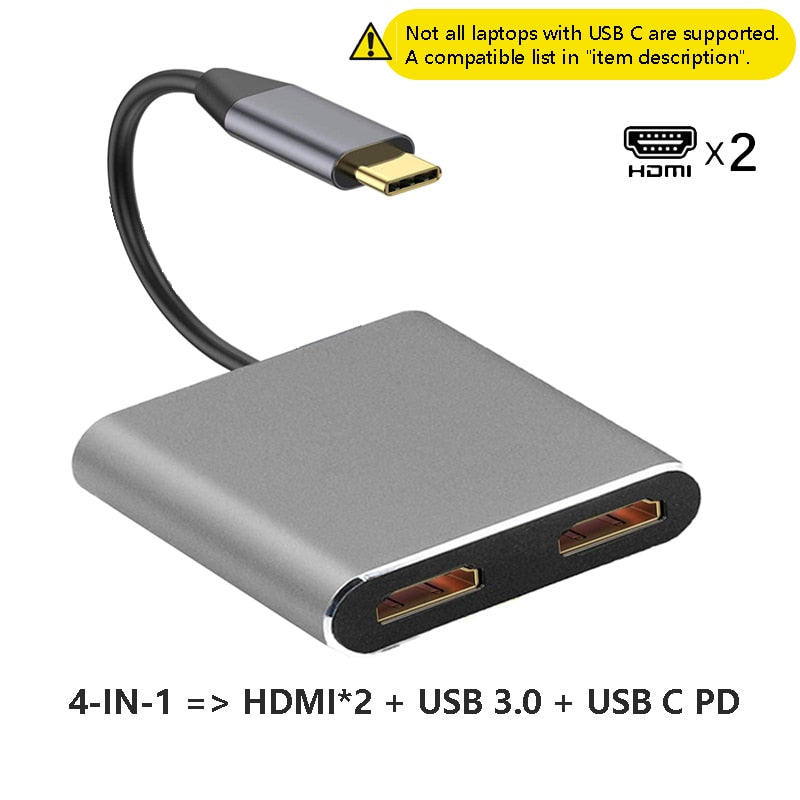

4-IN-1 Specifications

Color: Gray
Material: Aluminum alloy
Size: 58mm*52mm*12mm/2.28*2.05*0.47inch
Length of Cable: 100mm/3.94inch

Interface: USB Type C male port
Port-1: HDMI max support 4K 30Hz, Downwards Compatible with 1080P, 720P etc.
Port-2: HDMI max support 4K 30Hz, Downwards Compatible with 1080P, 720P etc.
Port-3: USB Type C PD Charging Port
Port-4: USB 3.0, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W

*************************************************
Function-1: Connect Keyboard, Mouse, USB Flash, Printer etc.
Function-2: Easy to Read Digital Camera Storage SD, Micro SD, TF Card
Function-3: Connect Lan via RJ45, Enjoy more reliable network than wireless
Function-4: Support USB C Power Delivery, Keep laptop the best performance
Function-5: Extend a Larger Screen via HDMI or VGA
Function-6: Connect Projector, Monitor, HD-TV, HDMI up to 4K 3840x2160 30Hz

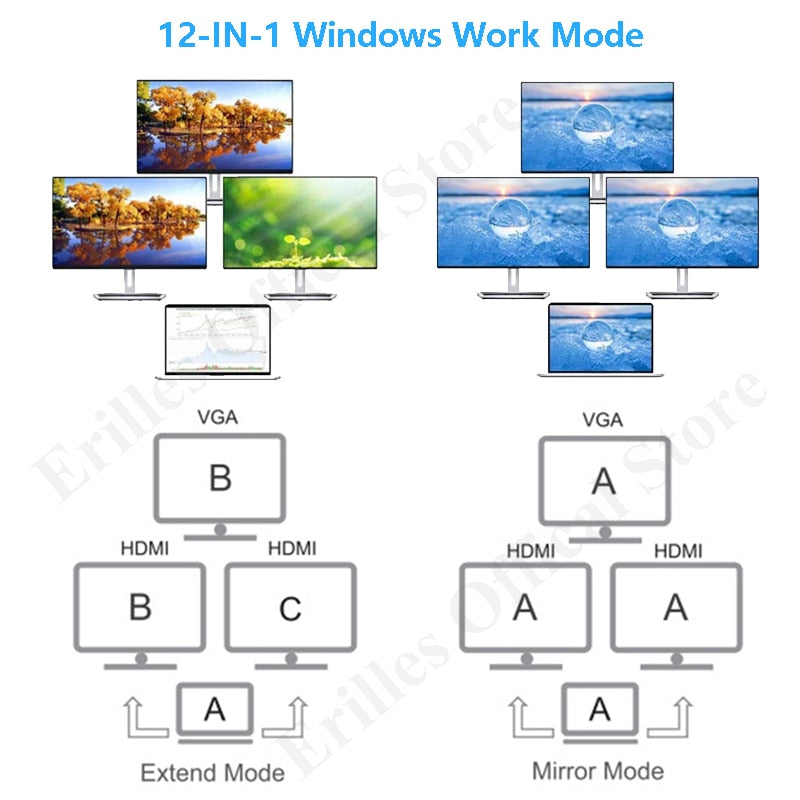

Function-7: 2 HDMIs and VGA, Support Mirror Mode and Extended Mode

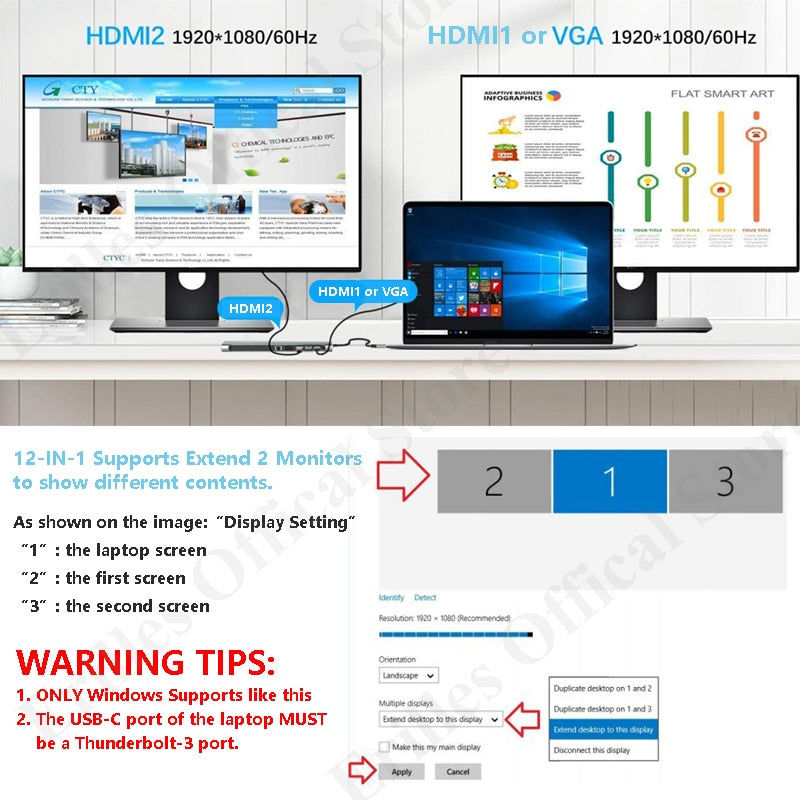

Function-8: Support MST(DisplayPort Multi-Stream Transport), Extend mode support Extend 2 monitors to show different contents on Windows

*********************************************************
Package Contents: 1*USB C Docking Station
ONLY 1 Docking station in the package, other accessories are not included.
*********************************************************


Compatible:

The Compatible list, updated by EYLink Store.

* For Lenovo ThinkPad T490, T490s, T14 (14"), T480, T480s, T580, T590, T15 (15")

* For Lenovo ThinkPad P43s (14"), P14s (14"), P15s (15"), L480, L490

* For Lenovo ThinkPad X280, X390, X13(13")Intel, X13 Yoga(13"), X380 Yoga(13")

* For Lenovo ThinkPad X1 Yoga Gen 3 (14"), X1 YOGA Gen 4 (14"), X1 Yoga Gen 5 (14")

* For Lenovo ThinkPad X1 Carbon Gen 6 (14"), X1 Carbon Gen 7 (14"), X1 Carbon Gen 8 (14")

* For Lenovo Yoga 720/900/920 Air 12'' ideaPad 720S

* For Dell XPS 13 9360, XPS 13 9370, XPS 13 9380, XPS 13 7390, XPS 13 9300

* For Dell XPS 13 9365 2-in-1, XPS 13 7390 2-in-1

* For Dell XPS 15 9500, XPS 15 9575 2-in-1

* For Dell Latitude 7400 2-in-1 14", Latitude 7200 2-in-1 12", Latitude 7210 2-in-1 12"

* For Dell Latitude 5420, Dell Latitude 5320, Dell Latitude 5290

* For HP SPECTRE x360 15.6'', HP SPECTRE x369 13''

* For HP ProBook x360 11 G7,EliteBook 830 G8,EliteBook 830 G7,EliteBook X360 830 G8

* For HP Elitebook 840 G8, HP EliteBook 840 G7, HP Elitebook 845 G7, HP Elitebook 855 G7

* For Asus ZenBook3U(ASUS UX390UAK), Asus ZenBook Flip S(UX370UA)

* For Asus TUF Gaming A15, Asus TUF Gaming A15 2021, Asus TUF Gaming A15 2022

* For Asus TUF Gaming F15, Asus TUF Gaming F15 2021, Asus TUF Gaming F15 2022

* For Chromebook Acer Chromebook Spin 713, Acer Chromebook 314, 315

* For Chromebook Google Pixelbook Go, Lenovo Chromebook C340 11", ASUS C223

* For Microsoft Surface Pro 7, Surface Pro X, Surface Go, Surface Laptop 3,Surface Book 2

* For Xiaomi Air 12.5'', 13.3'', Pro 15.6''

* For Razer Blade Stealth, Razer Blade Stealth 13

* For Teclast F6 Plus

* For MSI Creator Z16 A11UET and Creator Z16 A11UE

* For Samsung Galaxy S20, Samsung Galaxy S20+, Samsung Galaxy S20 Ultra


* updating...
The other windows laptops MUST require:
- The USB-C port on your laptop is a Thunderbolt-3 port.
- The USB-C port of the laptop is also a AC(power) port, or you don't want to power the laptop via this docking station.



WARNING TIPS:

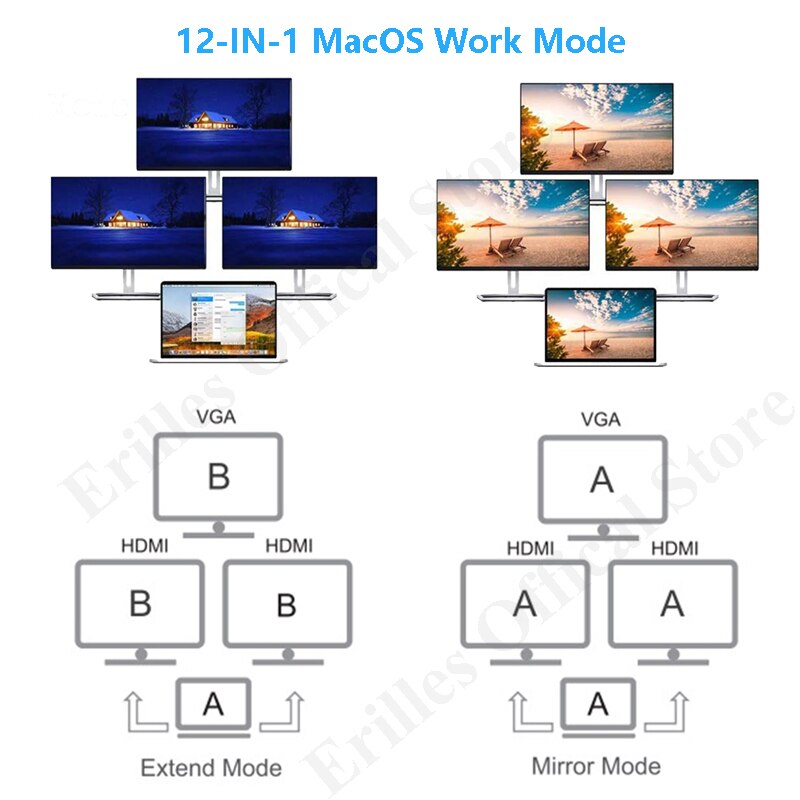

1. Extending 2 monitors showing the difference screens is ONLY supported in Windows laptop, Not support Macbook.

The extending 2 monitors screens would be duplicated in Macbook.


2. It supports 4K or 2K when only one HDMI monitor is connecting. When connecting more one monitor, all extending resolutions would downward to 1080p.


3. HDMI and 3.5mm Audio Port share an audio channel. If the connecting HDMI monitor doesn't support audio channel, 3.5mm Audio Port would be disable at the same time.


4. You may need make sure the host USB-C port is on the left side of your laptop.

Because the length of cable maybe not enough to connect USB-C port in the right side when placing this Docking station under the laptop.

Or you don't want to place this docking station under the laptop.


 5. When you use the docking station to extend monitors, please connect to monitors first, and then connect to your laptop. Not support HDMI and VGA Hot plug.
